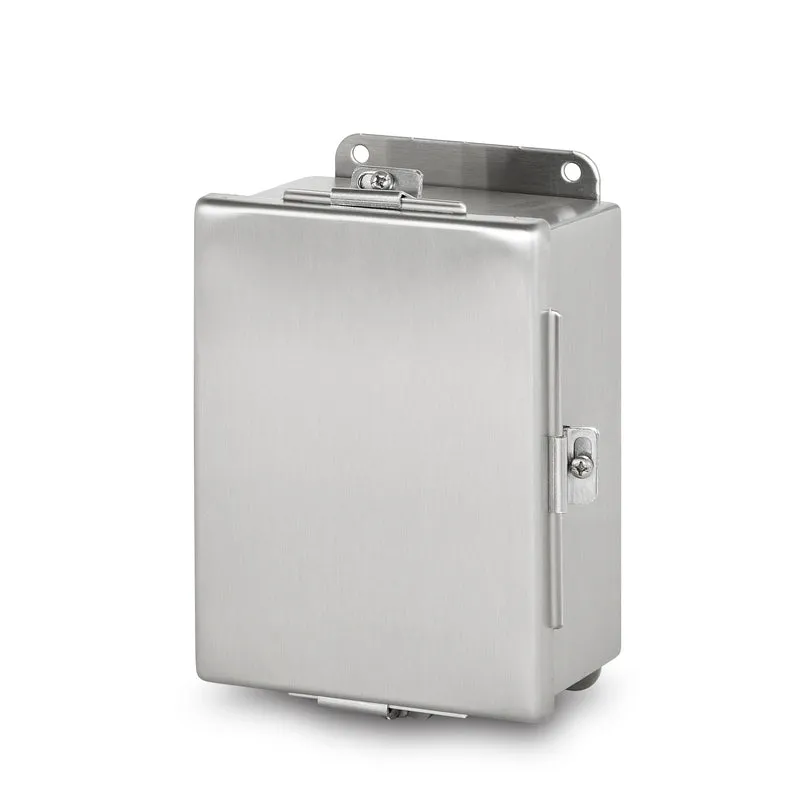

Austin JIC Continuous Hinge NEMA 4 (JFH) boxes are Underwriters Laboratories Listed and are designed for use as electrical junction boxes, terminal wiring boxes, and instruments housing. They are designed for indoor or outdoor use primarily to provide a degree of protection against windblown dust and rain, splashing water, hose directed water and damage from external ice formation.
Finish
Austin JIC Continuous Hinge NEMA 4 boxes are provided standard with an ANSI 61 gray polyester powder coating. Optional panels are painted white.
Construction

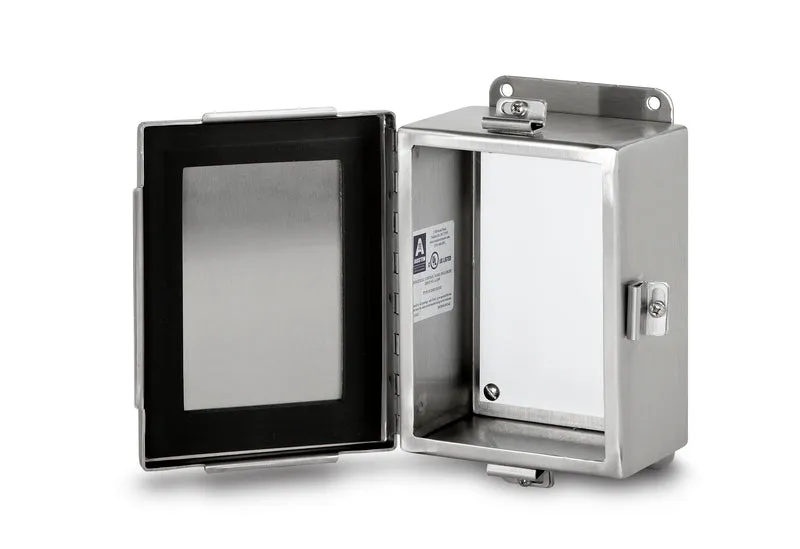

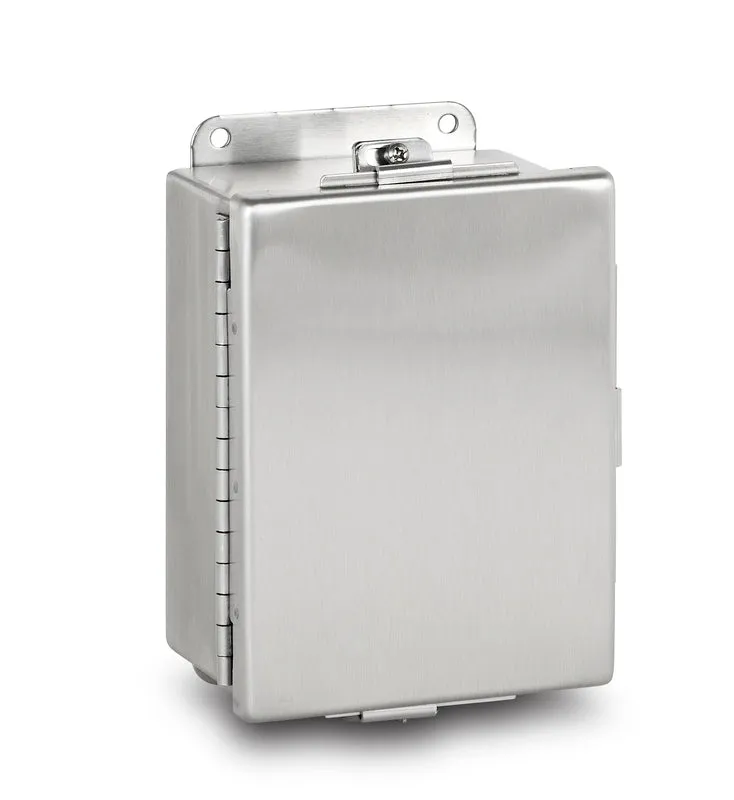

Fabricated in accordance with UL specifications from 14 gauge steel. Neoprene gasket attached to cover with oil resistant adhesive. Stainless steel external screw clamps on three sides. Continuous hinge. Continuously welded seams ground smooth. External mounting feet. Enclosures that are 6x4x3 and over are provided with stand-offs for mounting optional panel.
